Technical Specications

Rate Power：150W

S/N Ratio：≥88dB

Frequency Response：30Hz - 300Hz

Working Voltage：10V - 16V

Impedance：4 Ohm

Dimensions (LxWxH)：430mm×288mm×250mm

Technical Specications

Rate Power：120W

S/N Ratio：＞91dB

Frequency Response：20Hz - 150Hz

Fuse Rating：15A

THD：＜0.2%

Dimensions (LxWxH)：260mm x 195mm x 76mm

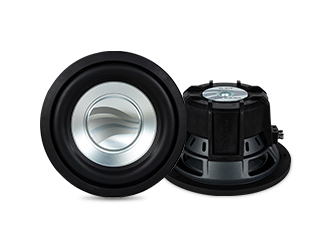

10 inch (254 mm) Subwoofer

Technical Specifications

Peak Power: 550 W

Power Rating: 300 W

Sensitivity: 86 dB/W/m

Frequency Response: 28Hz-200Hz

Impedance: 2×2 Ohm

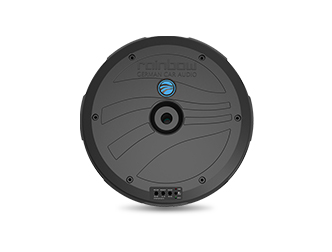

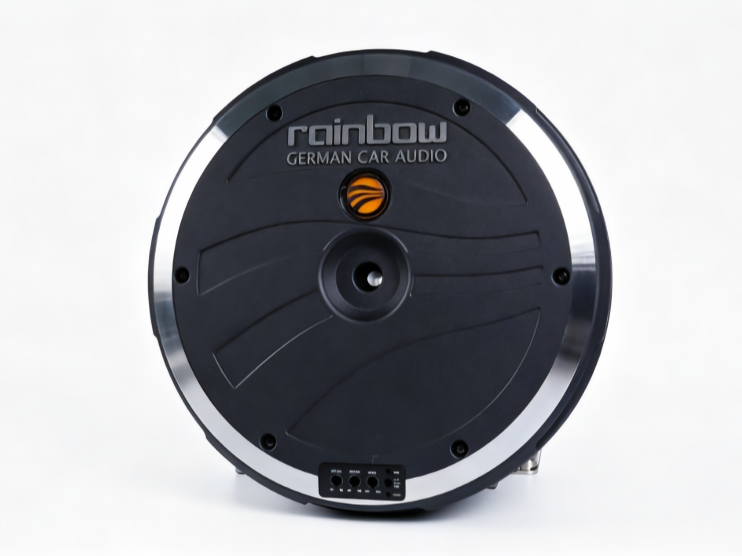

12 inch Spare Tyre Active Subwoofer

Technical Specifications

Power Rating: 150 W

Signal to Noise Ratio: ＞90dB

Frequency Response: 20Hz - 150Hz

Working Voltage: 10V - 16V

Impedance: 2 Ohm

High-level Input Sensitivity: 0.5V

Low-level Input Sensitivity: 200MV

Low Pass Filter: 50Hz - 150Hz

Bass Boost: 0 - 12dB

Active Subwoofer: 12”

Dimensions (LxWxH)：Ø360mm x 121.5mm

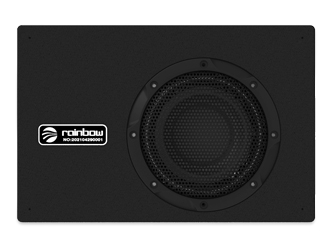

8 inch Active Subwoofer

Technical Specifications

Power Rating：200 W

Signal to Noise Ratio：＞98dB

Frequency Response：20Hz - 200Hz

Working Voltage：10V - 16V

Impedance：0.36 Ohm

High-level Input Sensitivity：0.13V

Low-level Input Sensitivity：300MV

Low Pass Filter：50Hz - 200Hz

Bass Boost：0 - 12dB

Active Subwoofer：8”

Dimensions (LxWxH)：440mm x 290mm x 140mm

6x8 inch Active Subwoofer

Technical Specifications

Power Rating：100 W

Signal to Noise Ratio：＞90dB

Frequency Response：20Hz - 180Hz

Working Voltage：10V - 16V

Impedance：4 Ohm

High-level Input Sensitivity：0.5V

Low-level Input Sensitivity：200MV

Low Pass Filter：50Hz - 180Hz

Bass Boost：0 - 12dB

Active Subwoofer：6”x 8”

Dimensions (LxWxH)：290mm x 209mm x 70.5mm
