Technical Specifications

Input Signal：6-channel high level, 2-channel low level, external bluetooth

Output Signal：8-channel low level, 8x50 Watts

Impedance：51 Ω

Frequency Response：20Hz - 20kHz

Signal to Noise Ratio：≥90dB

Total Harmonic Distortion：≤0.01%

Dimensions ( L×W×H )：240mm x 185mm x 52mm

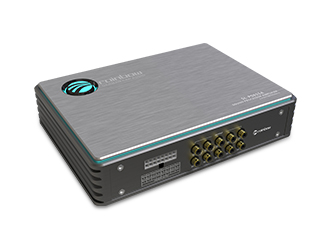

10 Channel DSP with 8 Channel Class AB Amplifier

Technical Specifications

Input Signal：8-channel high level, 2-channel low level, external bluetooth, optical

Output Signal：10-channel low level, 8x55 Watts

Input Sensitivity：7Vpp (low level), 28Vpp (high level)

Impedance：51 Ohm

Frequency Response：20Hz - 20kHz

Signal to Noise Ratio：≥90dB

Total Harmonic Distortion：≤0.01%

Dimensions ( L×W×H )：240mm x 175mm x 51mm
